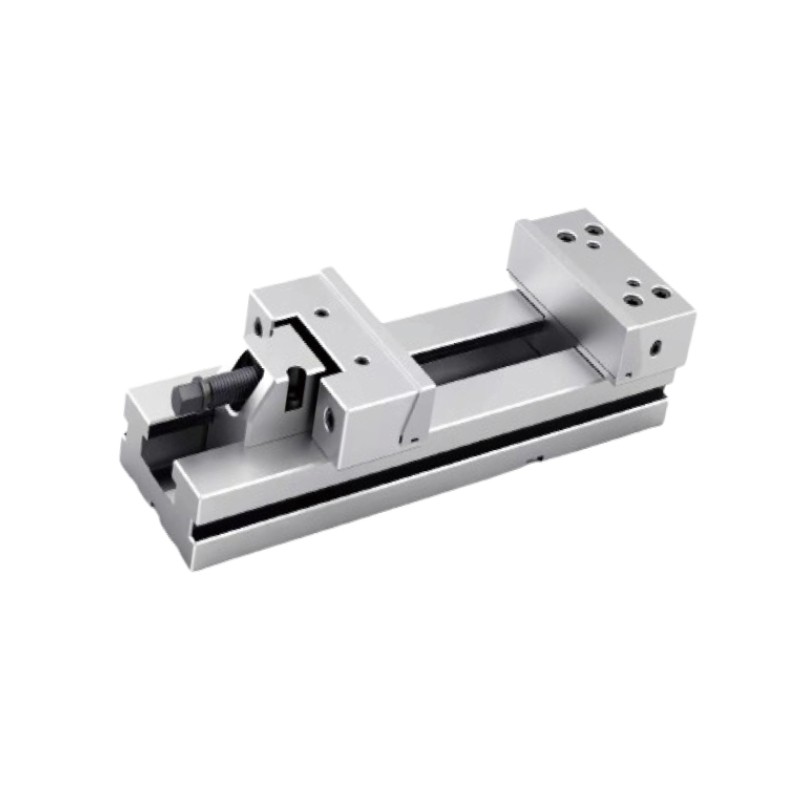

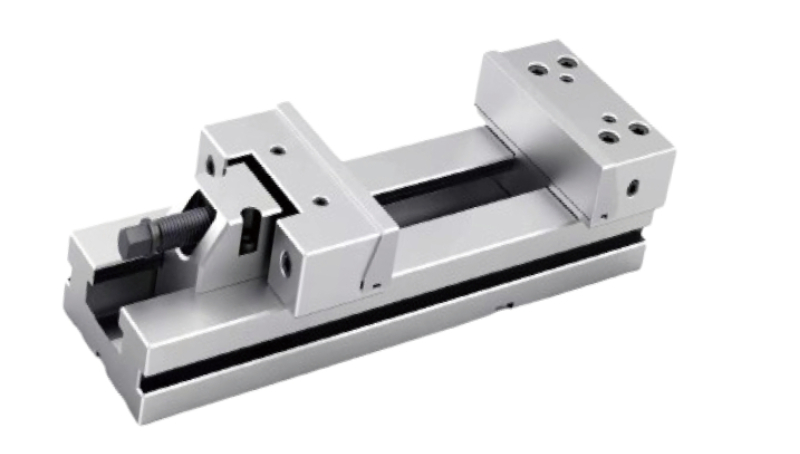

Modular Precision Machine Vise

Model: FT

Feature:
The height of multiple machines is less than or equal to 0.02mm, and the plane shape of the jaws is suitable for various occasions.

1. For rough steel parts, it is recommended to use V-groove jaws;
2. If there is a special-shaped auxiliary jaw that needs to be installed on the jaw, it is recommended to use threaded holes;
3. For soft materials such as aluminum or copper parts, be sure to use flat mouths;
4. Parallelism 0.005mm/100mm.squareness 0.005mm;
5. The hardness of working surface is HRC58-62 and precision.
