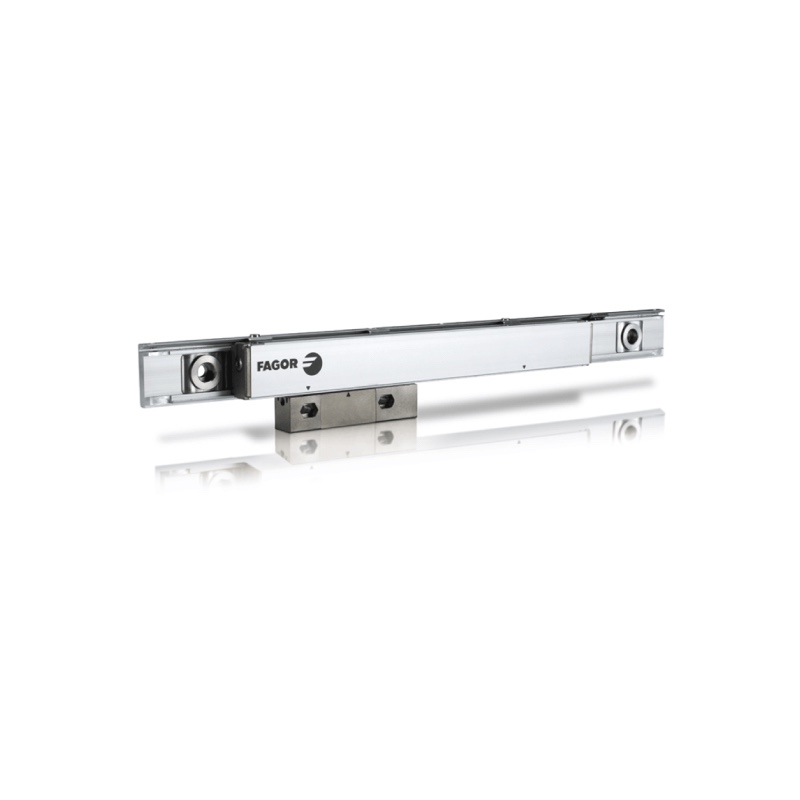

Fagor SV2A Series Absolute Encoders (70mm - 1240mm)

Fagor SV2A Series Absolute Encoders (70mm - 1240mm)

Description

Linear encoder with threaded head option for different installation options without the need for nuts. Small mounting support that may be secured from the top or from the bottom for easier installation.
Especially indicated for high standard environments in terms of speed and vibration. Their special design of the securing points of the linear encoder (TDMS™), drastically reduces the effects and ensures the accuracy and repeatability of the encoders.

Lengths

70 • 120 • 170 • 220 • 270 • 320 • 370 • 420 • 470 • 520 • 570 • 620 • 670 • 720 • 770 • 820 • 870 • 920 • 970 • 1.020 • 1.070 • 1.140 • 1.240 • 1.340 • 1.440 • 1.540 • 1.640 • 1.740 • 1.840 • 2.040

Models

SV2A: Absolute linear encoders with SSI protocol for FAGOR and others.
SV2AS: Absolute linear encoders with SSI protocol for SIEMENS® (Solution Line).
SV2AF: Absolute linear encoders with FANUC® (01 and 02) protocol.
SV2AM: Absolute linear encoders with MITSUBISHI® CNC protocol.
SV2AP: Absolute linear encoders with PANASONIC® (Matsushita) protocol.
SV2AD: Absolute linear encoders with FeeDat protocol for FAGOR and others.
SV2AD + EC-PA-DQ: Linear and absolute encoders with DRIVE-CLiQ® protocol, for SIEMENS® (Solution Line).
SV2AB: Absolute linear encoders with BiSS® protocol.
